Conveyor Belt
Conveyor Belt

Conveyor Belt

Conveying capacity: 78-2195t/h

Conveying speed: 1.3-2.0m/s

Belt width: 500-1600mm

Application range: used for conveying powder, granular, low-abrasive materials and bag materials.

Send MessageGet a Quote

Enter Email to Free Download PDF

Filling your email or name in the form for downloading the PDF can help you find the information you are looking for!

1. Conveyor belt

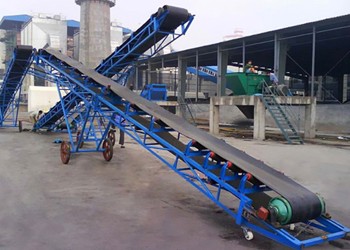

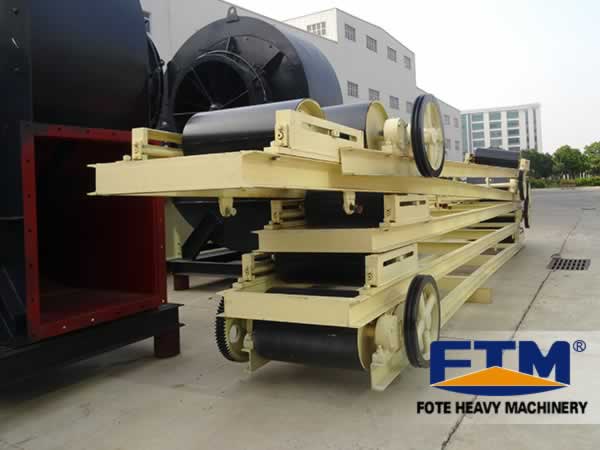

Conveyor belt is also called belt conveyor, which is widely used for conveying powder, granular, low-abrasive materials and bag materials with bulk density less than 1.67/t/cubic meter, such as coal, gravel, sand, cement, fertilizer, etc. Belt conveyor can be used in ambient temperature of -20℃ to + 40℃, and temperature of transporting material should be less than 60℃.

Conveyor Belt

Conveyor Belt

Conveyor Belt

Conveyor Belt

Conveyor Belt

2. Characteristics and technical advantages

1 Low power consumption, high transmission capacity, long transmission distance and easy to maintain;

2 Procedural control and automatic applications;

3 High speed, smooth running, low noise, and up and down transmitting are available;

4 Easy cleaning, dust-free transport;

5 Flexible conveyor line, feeding and discharging at one or several ports is available;

6 Reliable and continuous work is available.

3. Development trend

1 In the large-scale direction, including large transmission capacity and single-machine length;

2 Automated control operations;

3 Reducing energy consumption, which is the most important trend;

4 Reducing pollution, achieving green and environmental production;

5 Be closely integrated with detection technology, communication technologies and automatic control.

Model & Technical Parameter of Conveyor Belt:

Belt width (mm) Conveying length(m) Power(kw) Conveying speed (m/s) Conveying capacity(t/h)
500 ≤12
-----
3
12-20
-----
4-5.5
20-30
-----
5.5-7.5
1.3-1.6 78-191
650 ≤12
-----
4
12-20
-----
5.5
20-30
-----
7.5-11
1.3-1.6 131-323
800 ≤6
-----
4
6-15
-----
5.5
15-30
-----
7.5-15
1.3-1.6 278-546
1000 ≤10
-----
5.5
10-20
-----
7.5-11
20-40
-----
11-22
1.3-2.0 435-853
1200 ≤10
-----
7.5
10-20
-----
11
20-40
-----
15-30
1.3-2.0 655-1284
1400 ≤10
-----
11
<10-20
-----
18.5
20-40
-----
22-37
1.3-2.0 893-1745
1600 ≤10
-----
15
<10-20
-----
22
20-40
-----
30-45
1.3-2.0 1069-2195

Note: Fote Heavy Machinery reserves the right to change the technical parameters without notice.
