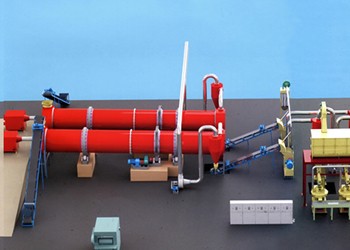

Rotary Drum Dryer
Rotary Drum Dryer

Rotary Drum Dryer

Yield: 0.5-50t

Power: 4-110kw

Weight: 3.2-120t

Applicable materials: sawdust, lees, rice hull, and ore powder, coal slurry, coal, etc.

Send MessageGet a Quote

Enter Email to Free Download PDF

Filling your email or name in the form for downloading the PDF can help you find the information you are looking for!

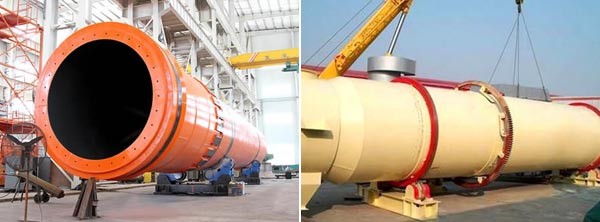

1. Brief introduction to rotary drum dryer

Rotary Drum Dryer

Rotary Drum Dryer

Rotary Drum Dryer

Rotary Drum Dryer

Rotary Drum Dryer

Rotary drum dryer is also called rotary dryer, is a specially designed product for drying wood chips and sawdust, which sets drying and cooling into one machine. Rotary dryer saves energy than conventional dryers and can achieve maximized energy savings. Rotary drum dryer is professionally designed for drying materials like sawdust, lees, rice hull, and ore powder, coal slurry, coal, etc.

Rotary Drum Dryer

2. Performance characteristics of rotary dryer

1 Strong anti-overload, large capacity, low drying costs;

2 Hot air moves from the rear and fully contacts with materials, so heat efficiency can be greatly improved by heat conduction, convection, and radiation heat transfer;

3 Rotary drum dryer adopts the new feeding and discharging devices, reducing the dust removal load;

4 Heat is directly transmitted to materials, so that the moisture can be evaporated continuously in the cylinder body, avoiding secondary pollution caused by dust efflux;

5 Current conduction dehumidifying avoids repeated drying effectively.

3. Weaknesses of the current rotary drum dryer

1 High cost, the current rotary drum dryer generally uses coal and firewood as heat fuel;

2 Heat loss, the heat utilization is less than 30%, raw materials with water content of 35% need to be dried 3 to 4 times.

4. Advantages of Fote rotary drum dryer

1 Use the lifting board to scatter materials in the hot steam so that the surface of particles fully contact with of the hot gas;

2 Saving drying costs about 75%, raw materials with water content of 35% can be dried completely one time;

3 Reasonable structure, high output, low energy consumption, uniform drying, less cleaning frequency, easy to maintenance.

5. Rationalization proposals

Before installation, we will conduct technical tests and organize workers to study the relevant technical information, understand product performance and precautions in work. During installation, the basis assembly, electrical lines and other projects should be strictly enforced in accordance with construction specifications. If there are special requirements on temperature, shock, dust, moisture and fire in the installation process, measures should be taken.

Model & Technical Parameter of Rotary Drum Dryer:

Length and Diameter Volume Reducer Thickness (mm) Weight (T) Power(kw) Fan power (kw) Yield(t)
Φ 0.8 × 8 4 JZQ350 8 3.2 4 4 0.5-2
Φ 0.8 × 10 5 JZQ350 8 3.7 4 4 0.5-2.5
Φ 1 × 8 6.3 JZQ350 8 4.5 5.5 4 1-2.5
Φ 1 × 10 7.9 JZQ350 8 5.2 5.5 5.5 1-3
Φ 1 × 12 9.4 JZQ350 8 5.7 7.5 5.5 1-4
Φ 1.2 × 10 11.3 JZQ400 10 9 11 7.5 1-4.5
Φ 1.2 × 12 13.6 JZQ400 10 10 11 7.5 1-4.8
Φ 1.2 × 14 15.8 JZQ400 10 11 11 7.5 1-5
Φ 1.2 × 16 18 JZQ400 10 12 11 7.5 2-6
Φ 1.5 × 12 21.2 JZQ500 12 14.4 11 7.5 2-9
Φ 1.5 × 14 24.7 JZQ500 12 15.6 15 11 2-9.5
Φ 1.5 × 16 28.3 JZQ500 12 16.8 15 11 2-10
Φ 1.8 × 14 35.6 JZQ500 16 23 18.5 15 5-11
Φ 1.8 × 16 40.7 JZQ500 16 24.5 18.5 15 5-12
Φ 1.8 × 18 45.8 JZQ500 16 26 18.5 15 5-13
Φ 2 × 18 56.5 JZQ650 18 31 22 18.5 5-15
Φ 2 × 20 62.8 JZQ650 18 33 30 22 5-16
Φ 2 × 22 69 JZQ650 18 35 30 22 5-17
Φ 2.2 × 18 68.3 JZQ650 20 38 30 22 8-18
Φ 2.2 × 20 75.9 JZQ650 20 42 30 22 8-19
Φ 2.2 × 22 83.5 JZQ650 20 46 30 22 8-20
Φ 2.2 × 24 91.1 JZQ650 20 50 30 22 8-21
Φ 2.4 × 16 72.3 JZQ650 22 45 37 30 10-20
Φ 2.4 × 20 90.4 JZQ750 22 51 45 37 10-22
Φ 2.4 × 24 108.2 JZQ750 22 60 55 37 10-25
Φ 2.4 × 28 126.6 JZQ750 24 67 75 55 10-30
Φ 2.7 × 18 1.03 JZQ750 24 55 75 55 15-25
Φ 2.7 × 24 137.3 JZQ750 24 68 75 55 15-30
Φ 3 × 20 141.3 JZQ900 25 81 75 55 25-30
Φ 3.2 × 20 160 JZQ900 25 95 90 55 25-35
Φ 3.2 × 28 225 JZQ900 25 101 90 75 25-40
Φ 3.5 × 24 230 JZQ900 25 120 110 75 30-50

Note: Fote Heavy Machinery reserves the right to change the technical parameters without notice.
